World-class precision machining

Investment in new machinery is critical to staying on top in the manufacturing industry. Continuous upgrades to our machining capabilities have allowed us to keep our plant world-class and bring truly impressive ‘smart gains’ in manufacturing capacity. Our dedicated prototyping capacity, alongside lights out 5 axis mill and lathe production capability, means we can bring even the most complex designs to life swiftly, supported by exceptionally efficient and competitive production manufacturing.



Click image for more info

Click image for more info

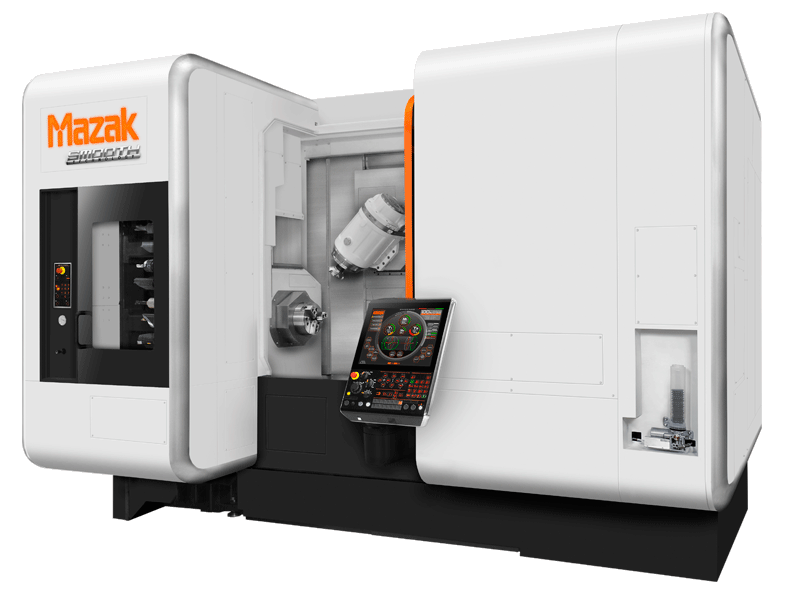

Mazak INTEGREX j-200s

The INTEGREX j-200S Multi-Tasking machine brings maximum value, precision and throughput to the production of complex medium-sized workpieces. In fact, it makes use of two turning spindles and a milling spindle to productively process parts complete in single setups.

In addition to its cost-effective, yet high-performance turning and angular milling capabilities, the machine also offers automatic tool changing, a large machining area and convenient operation to meet a wide variety of production requirements.

  • Capacity:
    Max. Swing: 20.87 in / 530 mm
    Max. Machining Diameter: 19.690 in / 500 mm
    Max. Machining Length: 35.820 in / 910 mm

  • Both turning spindles have 5,000-rpm spindle speeds and C-axis turning control

  • Main turning spindle has a 2.99" bore, second spindle has a 2.4" bore

  • Integral spindle/motor headstocks provide heavy-duty and high-speed cutting

  • 12,000-rpm milling spindle performs 4-axis simultaneous machining and 5-axis tool tip positioning

  • Available in tool storage capacities of 20, 36 and 72 for high machining versatility

  • Mazak MX Hybrid Roller Guide System provides unmatched rigidity, speed and accuracy

  • MAZATROL SmoothG CNC provides fast processing speeds

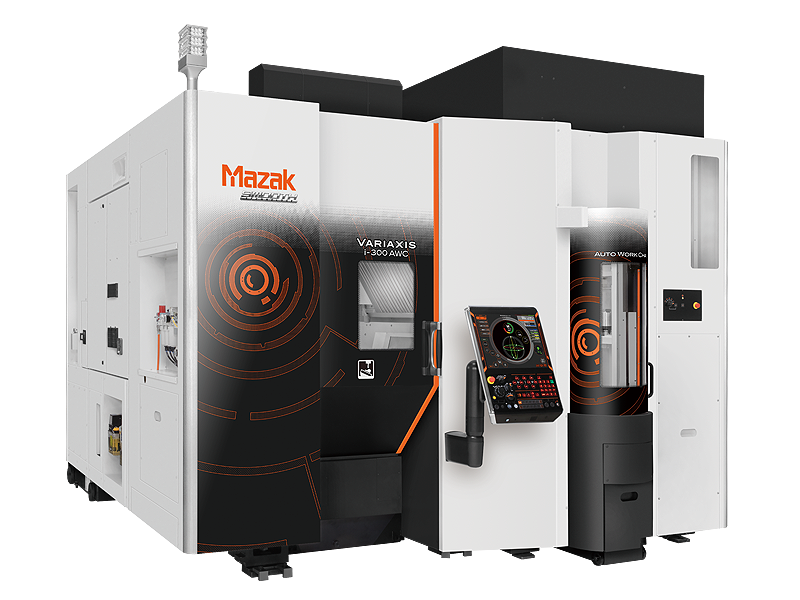

Mazak Variaxis I-300 AWC

The VARIAXIS i-300 AWC is a highly versatile full, simultaneous 5-axis Vertical Machining Center with a large storage capacity Auto Work Changer (AWC) that holds up to 32 workpieces weighing up to 132 lbs. (60 kg.) each.

The machine performs multiple and complex curved surface machining on small complex workpieces with high-precision requirements in single setups DONE IN ONE® processing. As such, the machine reduces production lead times, improves machining accuracy and lowers operating expenses.

The machine offers increased levels of productivity via extremely fast, high-rigidity spindles that can handle a wide variety of applications, from heavy-duty cutting to high-speed cutting of aluminum and other nonferrous materials.

  • Capacity:
    Travel X Axis: 13.78 in / 350 mm
    Travel Y Axis: 21.65 in / 550 mm
    Travel Z Axis: 20.08 in / 510 mm

  • DONE IN ONE capability

  • Wide range of spindle speeds available for exceptional versatility

  • Auto Work Changer (AWC) managed by software embedded in control

  • Reliable cam-driven tool changer offers higher productivity

  • Multiple drum tool storage with capacities up to 145 tools

  • High-rigidity table with roller gear cams eliminate backlash to ensure accuracy

  • MX Hybrid Roller Guide System offers durability and reliability for long-term accuracy

Click image for more info

Click image for more info


Click image for more info

Click image for more info

DMG Mori NLX 2500|700

The NLX 2500 | 700 is a high-rigidity, high-precision turning center with a distance between centers of 700 mm. The model flexibly handles various workpieces with a highly rigid bed, powerful turning capability and outstanding milling performance with the matured BMT (Built-in Motor Turret).

The model employs CELOS + MAPPS V as an operation panel, which allows a wide range of customers, from beginners to veterans, to easily machine simple to complex-shaped workpieces.

  • Capacity:
    Max. Machining Diameter: 366 mm
    Max. Machining Length: 1,255 mm


HAAS UMC 750

5-axis machining is an effective means to reduce setups and increase accuracy for multi-sided and complex parts. The Haas UMC Series universal machining centers are cost-effective solutions for 3+2 machining and simultaneous 5-axis machining. The UMC-750SS has an integrated high-speed, dual-axis trunnion table with a 500 mm diameter platter that features standard T-slots and a precision pilot bore for fixturing versatility. The trunnion provides +110 and -35 degrees of tilt and 360 degrees of rotation to provide excellent tool clearance and large part capacity.

  • Capacity:
    Travel X Axis: 30.00 in / 762 mm
    Travel Y Axis: 20.00 in / 508 mm
    Travel Z Axis: 20.00 in / 508 mm

  • 5-axis simultaneous machining

  • Powerful inline direct-drive spindle

  • High-speed  trunnion table

  • Includes Wireless Intuitive Probing System

Click image for more info

Click image for more info


Click image for more info

Click image for more info

HAAS VF-2SSYT

The Haas high-performance Super-Speed vertical machining centers provide the high spindle speeds, fast rapids, and quick tool changes necessary for high-volume production and reduced cycle times. Each SS machine features a 12,000-rpm, inline direct-drive spindle, an ultra-fast side-mount tool changer, and high-speed rapids on all axes.

The VF-2SSYT offers more Y-axis travel than our very popular VF-2SS.

  • Capacity:
    Travel X Axis: 30.00 in / 762 mm
    Travel Y Axis: 20.00 in / 508 mm
    Travel Z Axis: 20.00 in / 508 mm

  • Extended Y-axis travel

  • High-speed spindle

  • Fast rapids

  • Super-speed side-mount tool changer

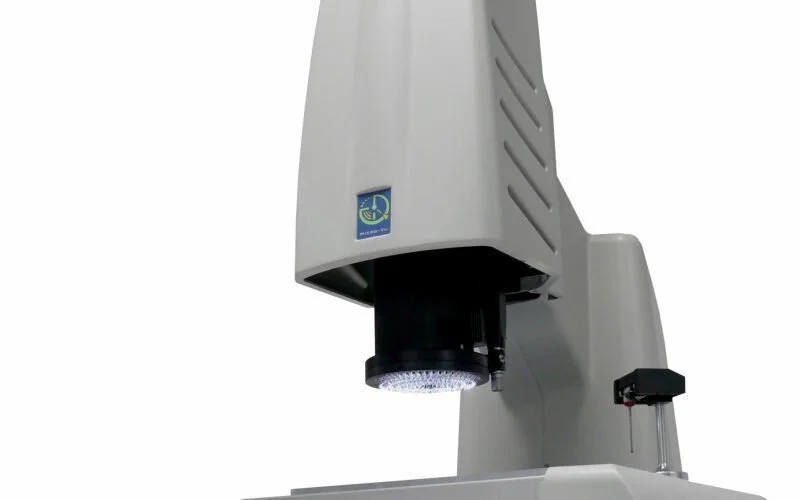

Micro-VU Vertex 312 HC

The Vertex 312 HC allows United Machinists to measure parts using both vision & traditional touch probe stylus to give accurate and repeatable measurements of parts for clients. These measurements are also able to be captured and documented including custom reports upon request. Giving our clients an overview of their parts and giving them a peace of mind knowing that they are in specification.

  • Touch Probe

  • Programmable zoom lens

  • 42 Channel Lighting System

  • “Mono-Rail” Bearing design

  • Accurate Z measurements with Vision

  • Encoder Resolution of 0.1µm

  • Measurement Capacity: 315x315x250mm

  • Stage Capacity: 10kg

Click image for more info

Click image for more info


Supporting Machines:

  • VF3 Haas 4-axis Machining Center

  • MDC500 4-axis Twin Pallet Machining Center

  • Doosan LM180 3-axis Lathe

  • Super Quick Turn 15M Mazak 3-axis Lathe

  • PRO1000 Hartford Machining Center

  • TC-20 Takisawa Lathe

NLX guts up close.jpg

Bottom Line

United Machinists’ advantage comes from expert programmers and operators, whose experience and invention allows us to draw the absolute highest performance from our machines. Our approach to efficiency is simple: More is better. At every stage, our processes streamline, support and speed-up production, whether we’re introducing next-generation CAD/CAM software, enhancing the performance of our machines, or making job progress more visible to clients.

With the purchase of our newest milling machines, we have adopted the TopSolid CAD/CAM software system – a commercial first for New Zealand, bringing gains in programming efficiency, machine optimisation and a range of ‘smart’ touches custom designed for our growing body machines.

We are constantly looking for ways to lift the productivity of our plant through advanced LEAN manufacturing and production processes. Our KANBAN scheduling system gives total visibility over production to clients, who can see and comment on jobs in progress. Recently, we have also implemented Global Shop, an enterprise resource planning software. The software has allowed us to streamline our processes and have greater visibility of workflow, enabling us to both increase our capacity and improve our scheduling – ultimately leading to better turnaround times and customer service.

Beyond this, we foster a culture of collaboration, encouraging our programmers and operators to contribute to improvements in machining processes, scheduling, machine enhancements and workshop setup.
